BOITE NOIRE

Blending into the background. Standing out in the mix.

The ultimate stage direct box.

BOITE NOIRE

€

899

€

all included (shipping & duties)

Price TBA

Discontinued (Soon to be a classic?)

BOITE NOIRE is a pure Class A direct box, designed to bring studio sound to the stage. It's full-black dress hides a big Carnhill VT24499 transformer for a true-to-the-source thick sound. Want more colour? Use the MIC output level to plug into your preferred mic preamp. Play vintage gear? Get a perfect impedance match between instruments and amplifiers with the integrated buffer.

This product is currently out of stock.
Pre-order now to catch the next production!

This product can't be pre-ordered.
Contact us for more information.

New!

BOITE NOIRE

€

899

€

incl. delivery and fees

Price TBA

Discontinued (Soon to be a classic?)

Free delivery from 350€, depending on your country.

80s

 INSPIRATION

We've taken our inspiration from the sound of vintage hifi equipment from the 80s, at the height of the use of audio transformers, which gave a good, big, loud sound.

The successor to our already acclaimed DI01 is based on the same analog circuitry, but features a new power module for improved sound, and a new sturdy enclosure for years of worry-free touring.

HOW DOES IT
‍SOUND?

MusicMan StingRay

A MusicMan StingRay straight into the DI02.

MP3

WAV



https://www.hlabs.ovh/audio-tracks/DI02%20-%20Stingray%20-%20BassTheWorld.mp3

Credits :

René Flächsenhaar | BassTheWorld.com

Adamovic Light Active Bass - Chords

A 5-string Adamovic Light active bass straight into the DI02.

MP3

WAV



https://www.hlabs.ovh/audio-tracks/DI02%20-%20Adamovic%20Light%20Active%20Bass%20-%20Chords%20-%20BassTheWorld.mp3

Credits :

René Flächsenhaar | BassTheWorld.com

Palm Mute P-Bass

An AVP BTW P-Bass straight into the DI02.

MP3

WAV



https://www.hlabs.ovh/audio-tracks/DI02%20-%20P-Bass%20Palm%20Mute%20-%20BassTheWorld.mp3

Credits :

René Flächsenhaar | BassTheWorld.com

Rickenbacker Walking Bass

A Rickenbacker straight into the DI02.

MP3

WAV



https://www.hlabs.ovh/audio-tracks/DI02%20-%20Rickenbacker%20Walking%20Bass%20-%20BassTheWorld.mp3

Credits :

René Flächsenhaar | BassTheWorld.com

Electric Guitar (Stratocaster)

A US stratocaster directly recorded through the DI02.

MP3

WAV



https://www.hlabs.ovh/audio-tracks/hlabs_di02_strat_gtr_bitoun.mp3

Credits :

Julien Bitoun

Acoustic Guitar (Gibson J-185)

A Gibson J-185 directly recorded through the DI02.

MP3

WAV



https://www.hlabs.ovh/audio-tracks/hlabs_di02_ac_gtr_bitoun.mp3

Credits :

Julien Bitoun

No items found.

3 MAIN FEATURES You WILL LOVE

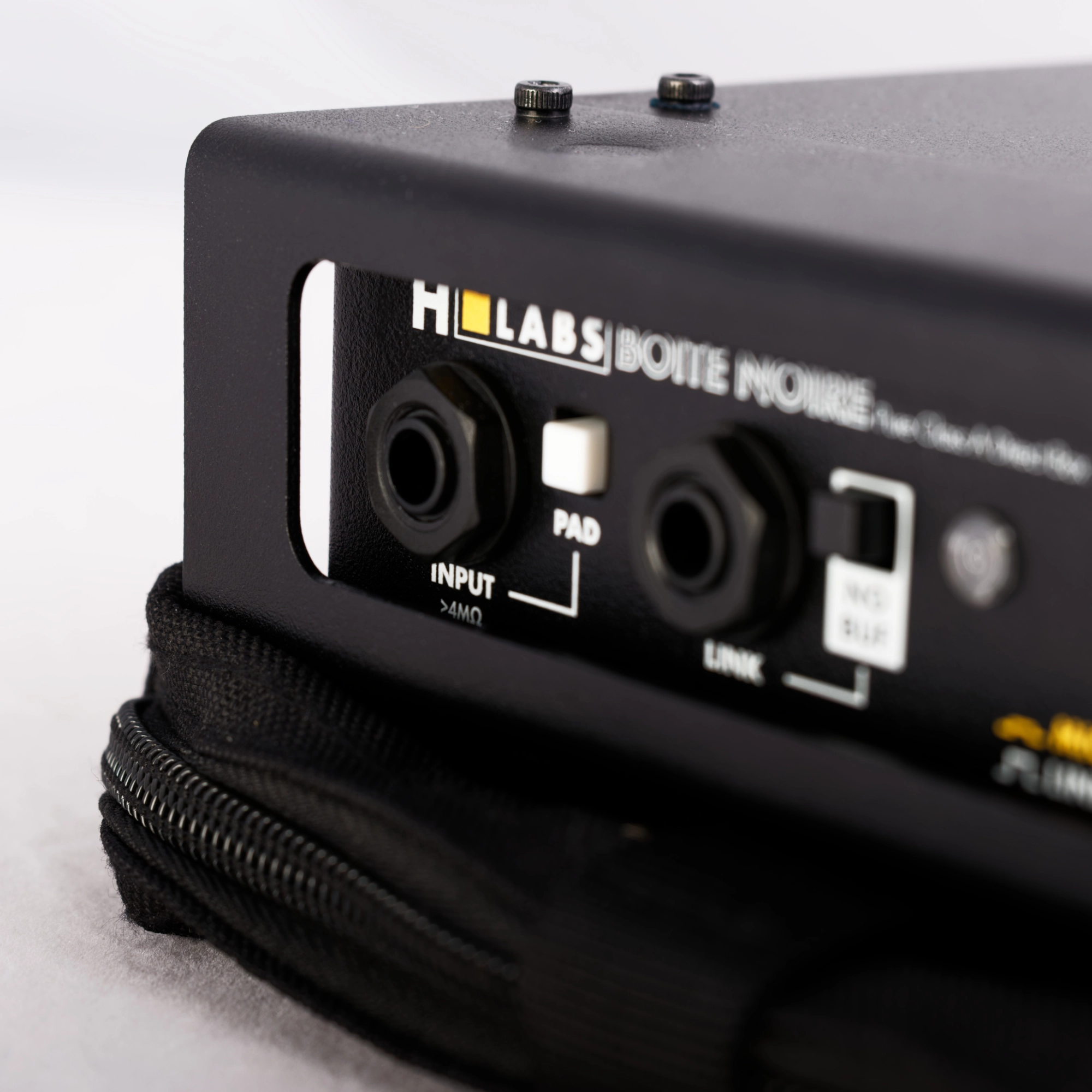

A very high input impedance for a wide and dynamic sound, even with piezo pickups.

An integrated "Buffer" on the Link output to get perfect impedance match with the following amplifier.

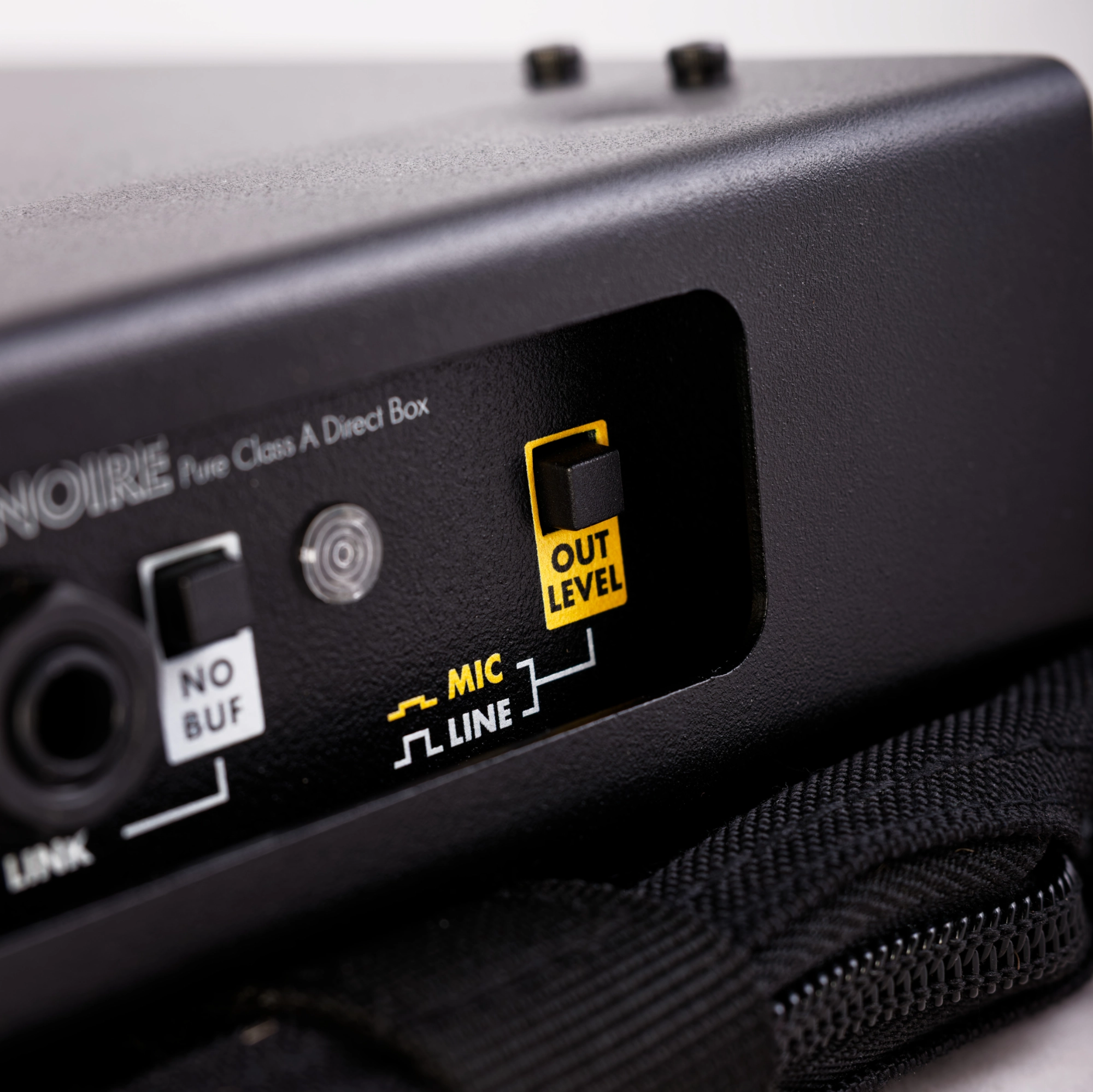

A switchable MIC/LINE output level to match all existing setups.

WONDERING WHAT'S INSIDE ?

A pure Class A, HiFi-inspired circuit that delivers a rich and wide sound.



The legendary Carnhill© VT24499 output transformer for total galvanic isolation while adding body and character.



An all-black, sturdy casing that will brave the stage for decades to come.



Ok, sounds cool,
but what about the
‍specs?

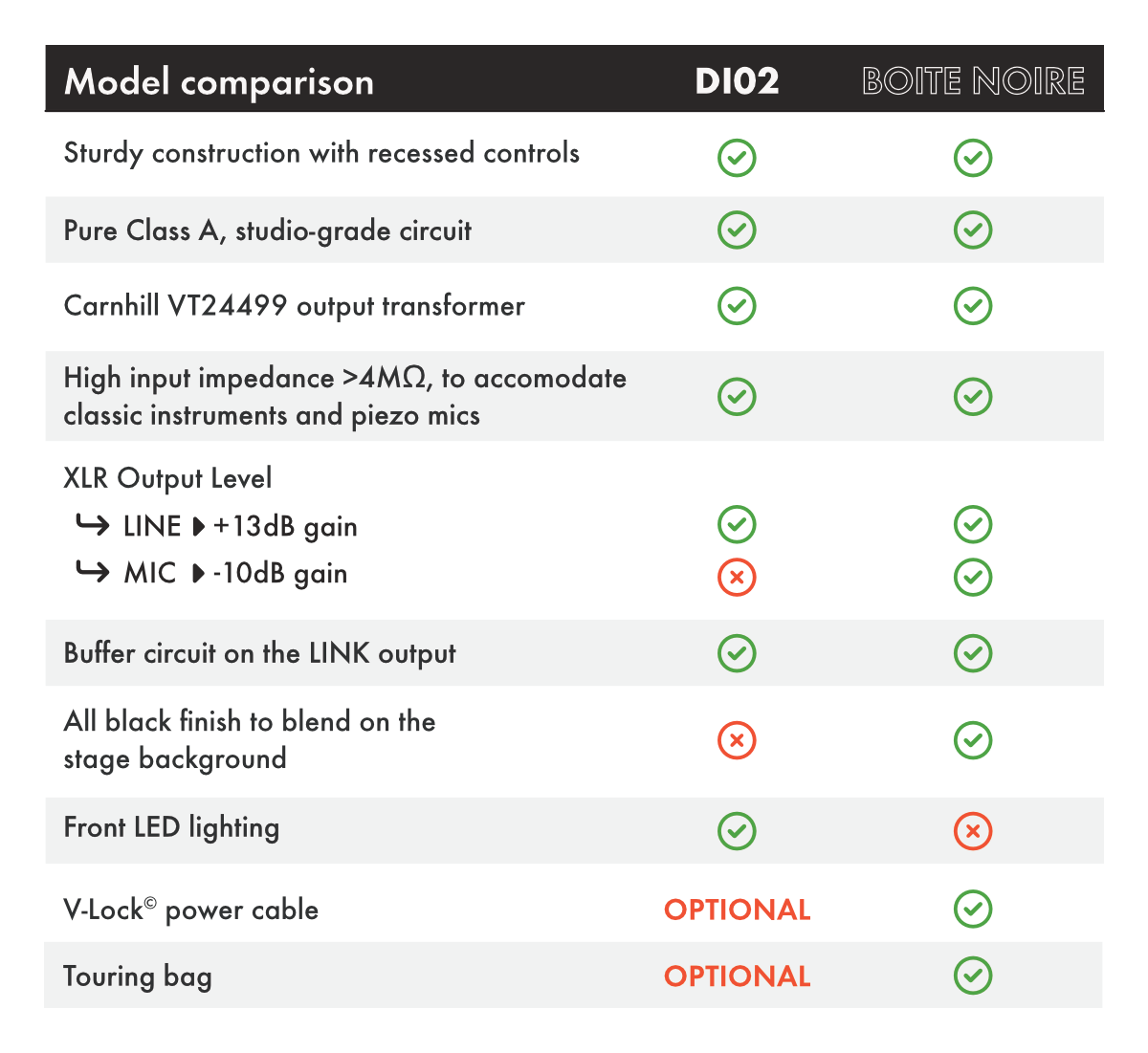

Both the BOITE NOIRE and the DI02 have the same analogue circuitry and BIG sound, with a few different utility features. Find out which is best for you:

‍

Specifications:

Class A push-pull power stage, inspired by vintage HI-FI output stages: a must for exceptional roundness and transients
Very high input impedance - over 4 MΩ - not loading the source, and independent of the PAD position

Switchable output level: MIC › -10dB gain | LINE › +13dB gain
Max input level: +9dBU without PAD | +18dBU with PAD
Max output level: +22dBU without PAD | +19dBU with PAD

Output transformer: Carnhill VT24499
Integrated buffer circuit on the LINK output

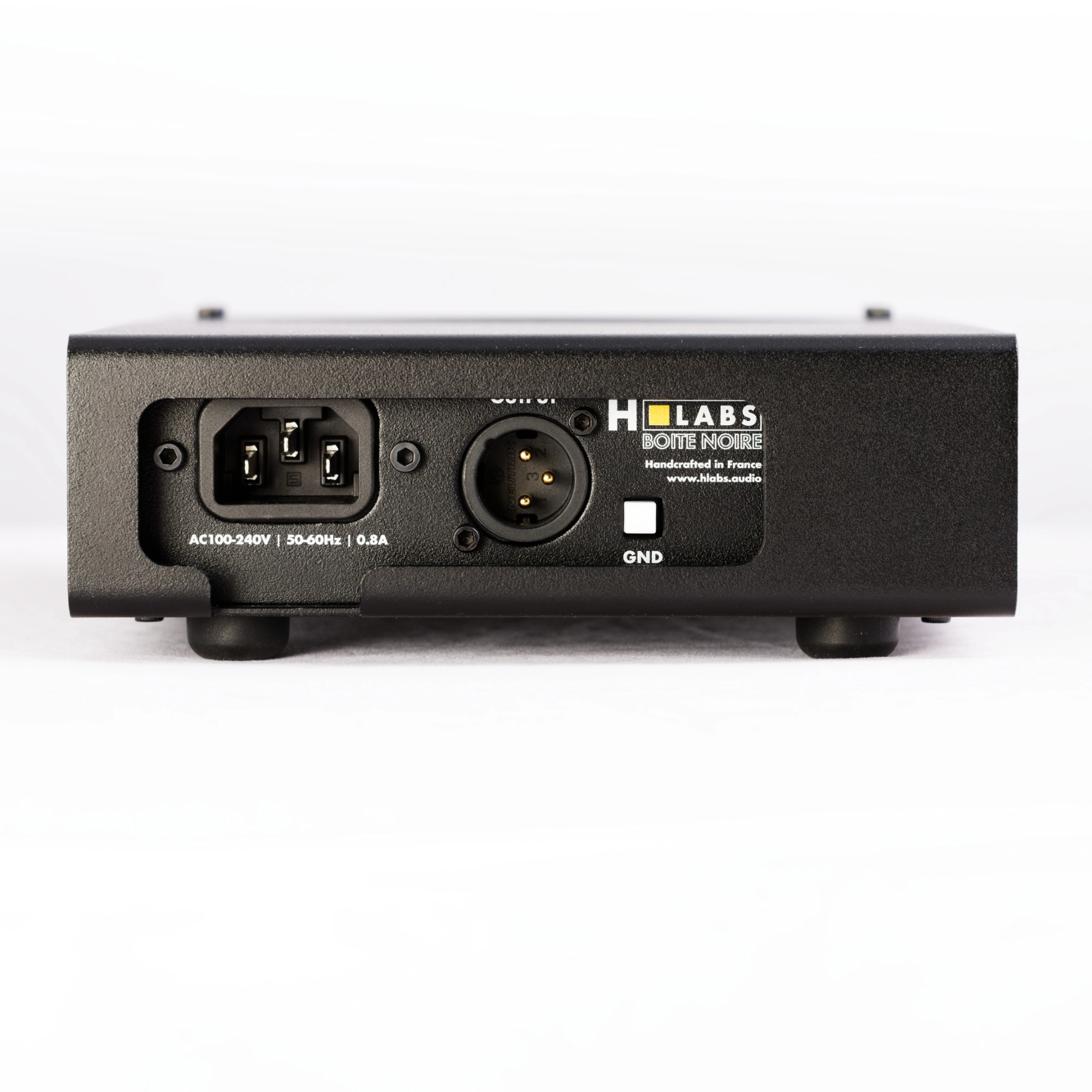

Earth lift on the output XLR to avoid ground loops

Frequency response (1kΩ load) : ±1.0dB from 5.4Hz to 25+kHz | ±0.2dB from 20Hz to 20kHz
SNR : >102dB (0.2% max THD)

Worldwide compatible power supply: 100-240V | 50-60Hz
Dimensions : 220x160x47mm | 8.7x6.2x1.8in
Weight : 1.85kg | 4.1lb

‍

Designed and assembled in our workshop in France. All parts are manufactured by our beloved partners in France & Europe.

User Manual



Download
PDF

Digital recall sheet available at
